Image OCR

What it does

Image OCR configures the engine used to extract text from images before DLP inspection runs over it — for example, a screenshot containing a credential or a photographed document. You choose an engine, the languages it should recognize, and can disable OCR entirely for a configuration.

Configure in the UI

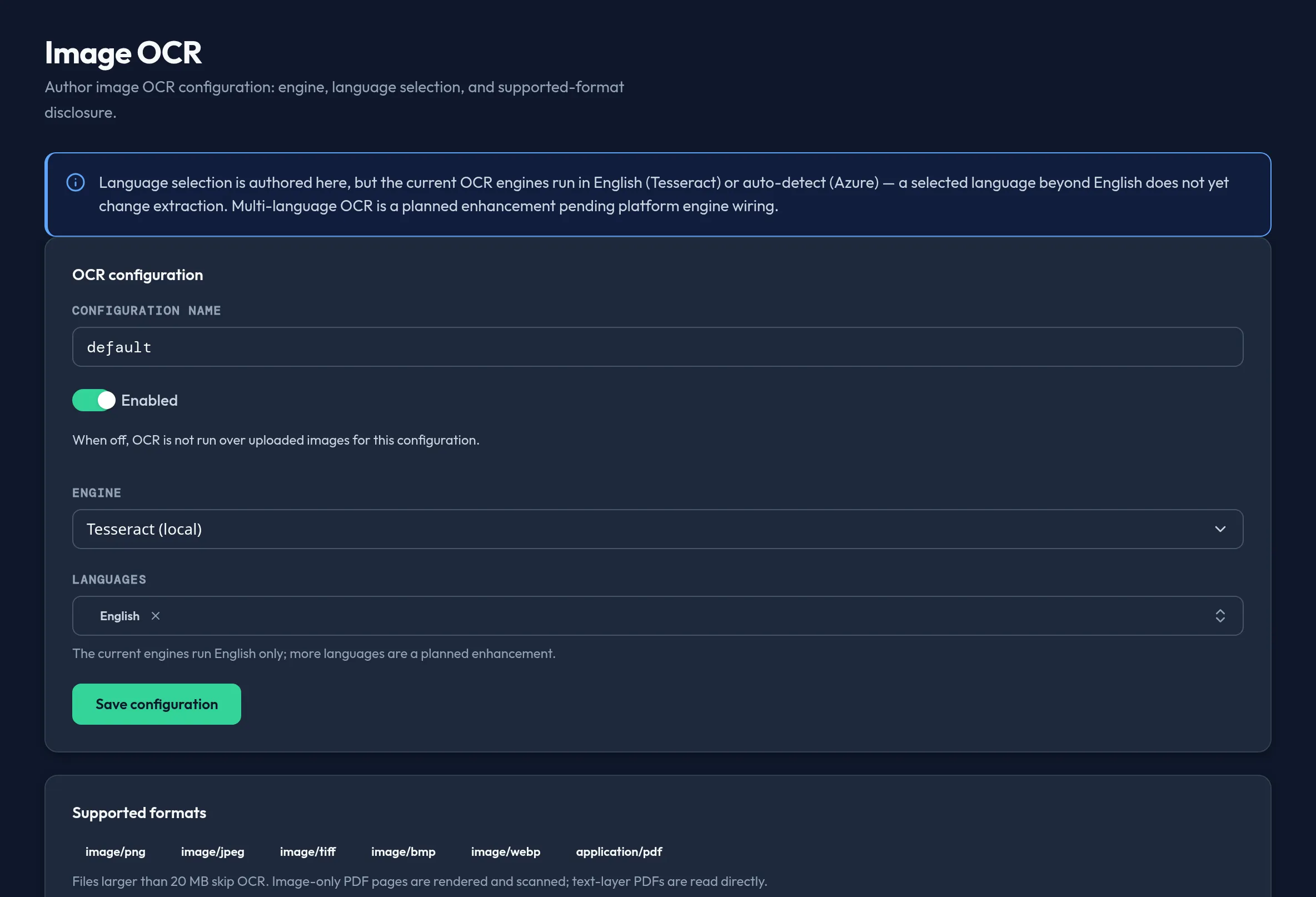

Models & Routing → Image OCRCitadel synthetic data on a non-production Arbitex demo instance. Never client data.

1. Open Models & Routing → Image OCR. Pick an OCR engine from the dropdown: Tesseract (local), Azure AI Vision, or Disabled.

2. Choose which languages to recognize from a bounded multi-select list — this is not free text. If the engine auto-detects language (Azure AI Vision), the control is replaced by an “Auto-detected” badge instead.

3. Review the Supported formats card — it lists every image format this engine accepts, plus the maximum file size; larger files skip OCR. Image-only PDF pages are rendered and scanned; text-layer PDFs are read directly without OCR.

4. Toggle Enabled off to stop running OCR for this configuration without deleting it, then select Save configuration.

English-only honesty banner

The panel shows a banner sourced directly from the engine’s own capability response — for the local Tesseract engine today this states that recognition is English-only, with additional languages called out as a planned enhancement. The banner text always reflects what the selected engine can actually do; it is not a marketing claim.

Cloud engines send image data to that provider

Azure AI Vision is a cloud OCR service — selecting it sends the image being scanned to Microsoft’s endpoint for recognition. Tesseract (local) runs entirely on the deployment unit. If you operate under data-residency or air-gap constraints, use Tesseract.

API equivalent

curl -X POST "https://admin.arbitex.ai/api/v1/admin/models-routing/image-ocr/capabilities" \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{}'
# → per-engine language list, auto-detect flag, supported file types, max file size, and the honesty notice

curl -X POST "https://admin.arbitex.ai/api/v1/admin/models-routing/image-ocr/set" \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"du_id": null, "objects": [{"object_key": "default", "engine": "tesseract", "languages": ["eng"], "enabled": true}]}'

set is replace-all for the segment — resend every existing configuration plus your change. There is no dedicated delete verb.

Plan & availability

Image OCR configuration is available on every plan. Which channel modules (such as File Inspector) route image content into DLP for your organization is a separate, plan-independent capability decision from the OCR engine choice documented here.

Deployment notes

On a Hybrid Outpost, run the local Tesseract engine to keep image content on the deployment unit — this is the only engine choice that never leaves your network. Air-gapped deployments should not select Azure AI Vision, since it requires outbound connectivity to Microsoft’s endpoint that an air-gapped outpost does not have.
