SIEM Connectors

What it does

SIEM Connectors points your organization’s audit stream at an external SIEM: Splunk HEC, Microsoft Sentinel, Elastic SIEM, Datadog, Sumo Logic, Palo Alto Cortex XSIAM, or IBM QRadar. Each connector has its own non-secret config fields (endpoint, index, tenant, and so on) plus exactly one confidential credential, which you submit as write-only client-side envelope ciphertext — the control plane never sees or stores plaintext. This surface moved here from Users & Access because audit-stream fan-out is a monitoring/system concern.

Configure in the UI

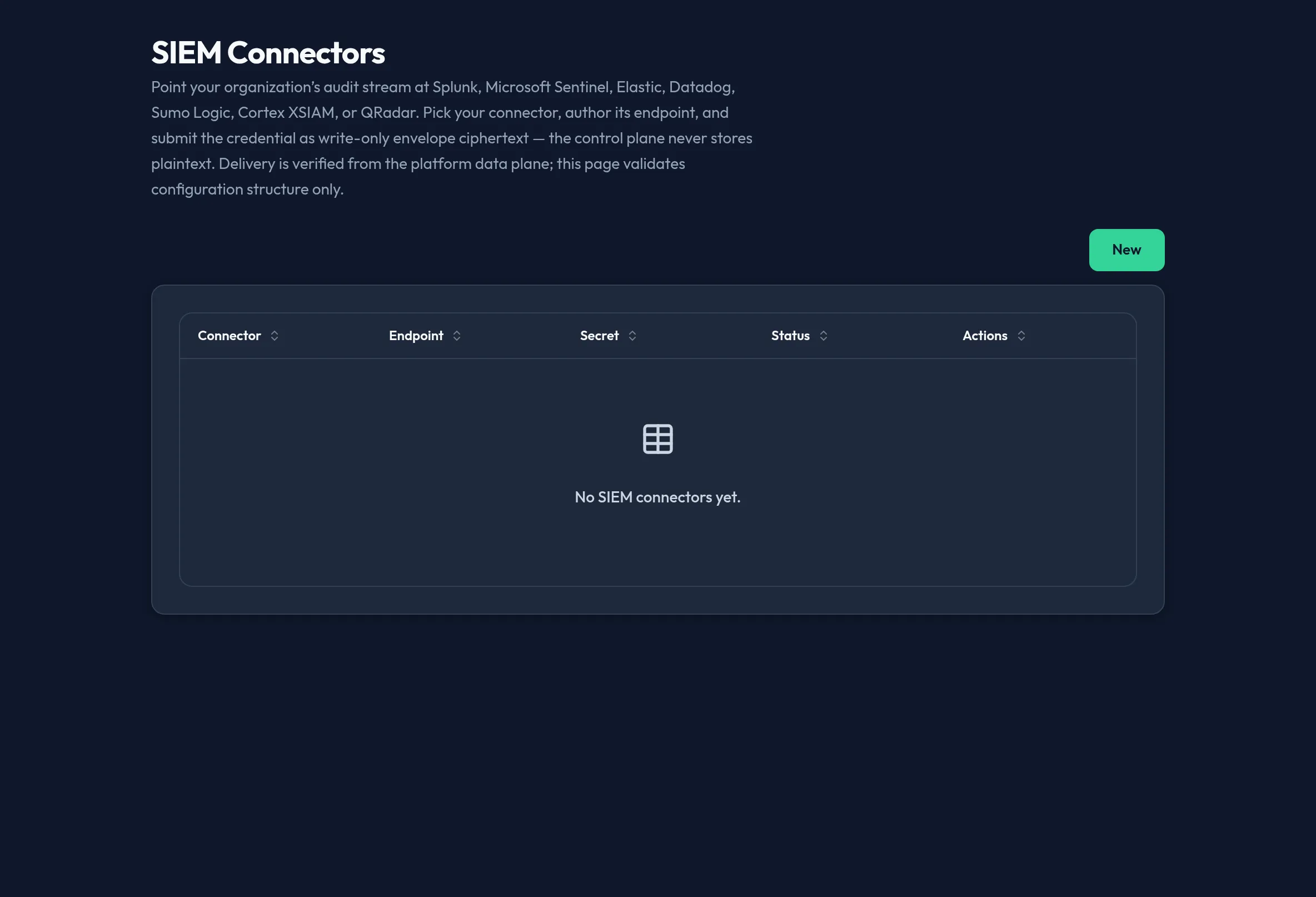

System → SIEM ConnectorsCitadel synthetic data on a non-production Arbitex demo instance. Never client data.

1. Open System → SIEM Connectors and click New.

2. Choose a Connector type. The form’s fields change to match — for example Splunk HEC asks for a HEC URL, index, and source; Sentinel asks for a tenant ID, client ID, DCE endpoint, and DCR immutable ID; Sumo Logic has no separate config fields because its HTTP Source URL is the secret.

3. Fill in the connector’s non-secret fields (URL, tenant/cloud ID, and similar).

4. Provide the connector’s one credential as write-only envelope material: ciphertext (base64), the wrapped DEK (base64), and optionally a KMS key reference and a last-4 display hint. Leave these blank when editing an existing connector to keep its current secret unchanged.

5. Toggle Enabled, then save. Use Test connection to validate the configuration’s structure — this is a zero-egress structural check, not a live delivery test.

6. Use Edit or Delete from the connector list to manage an existing connector.

Secrets are write-only

The confidential credential for each connector is never read back — a read only reports whether a secret is stored (Stored / None), never its value.

Test connection validates structure, not delivery

This page’s Test connection checks that your configuration is structurally valid without making any outbound call. Verifying that events actually reach your SIEM is a runtime delivery test served from the platform data plane, not this admin control-plane surface.

API equivalent

List, create/update, delete, and structurally test a connector:

curl -X POST "https://admin.arbitex.ai/api/v1/admin/users-access/siem/list" \
  -H "Authorization: Bearer $ADMIN_TOKEN"
# → { "objects": [ { "object_key": "...", "connector_type": "splunk_hec", "config": {"url": "https://splunk.example.com:8088"}, "has_secret": true, "is_enabled": true } ] }

curl -X POST "https://admin.arbitex.ai/api/v1/admin/users-access/siem/upsert" \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"siem": {"connector_type": "splunk_hec", "is_enabled": true, "config": {"url": "https://splunk.example.com:8088", "index": "arbitex"}}, "ciphertext_b64": "...", "wrapped_dek_b64": "..."}'

curl -X POST "https://admin.arbitex.ai/api/v1/admin/users-access/siem/delete" \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"object_key": "$OBJECT_KEY"}'

curl -X POST "https://admin.arbitex.ai/api/v1/admin/users-access/siem/test-connection" \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"object_key": "$OBJECT_KEY"}'

Although this panel is nav-homed at /system/siem, its backend routes still live under the Users & Access authoring seam (/api/v1/admin/users-access/siem).

Plan & availability

SIEM connector authoring is typically a higher-tier capability; where a plan doesn’t include it, this System feature renders visible but disabled with an upgrade prompt.

Deployment notes

On a Hybrid Outpost, the audit stream fanned out to your SIEM originates from that deployment’s own audit log, so a connector configured there only carries events from that Outpost. In an air-gapped deployment, your SIEM endpoint must be reachable from inside the air gap — a cloud-hosted SIEM endpoint outside it will never receive deliveries.

Related

• Alerts — a related but distinct notification surface: alert rules fire on metric thresholds, not on every audit event.
• Audit log — the source of the events your SIEM connector receives.
